M²erlin Meridian Automatic milking in groups

The smart choice for batch milking

With the M²erlin Meridian from Fullwood, cows can be automatically milked in groups. The solution is based on a unique combination of the consistency and routine of conventional milking, but with the advantages of robotic milking.

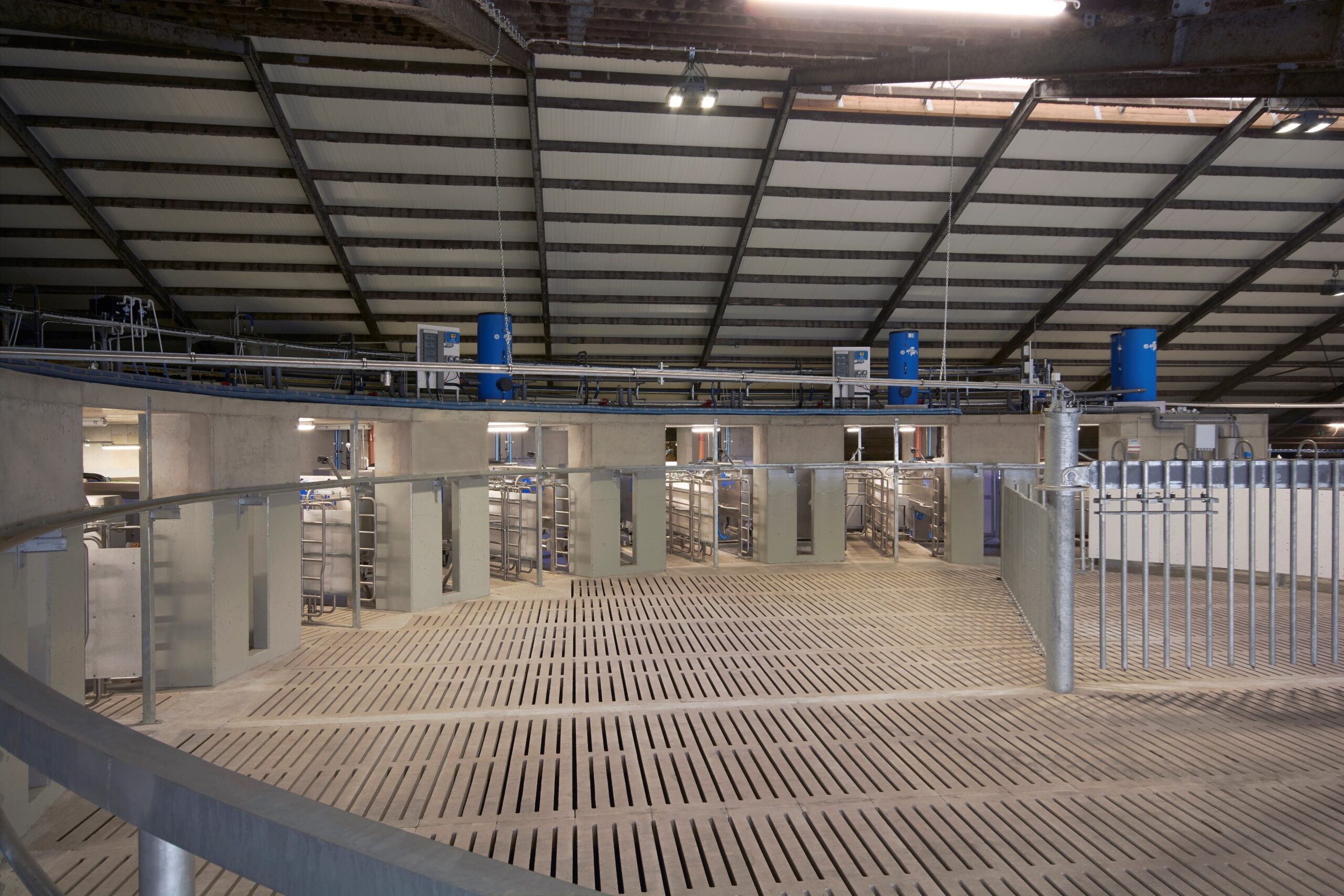

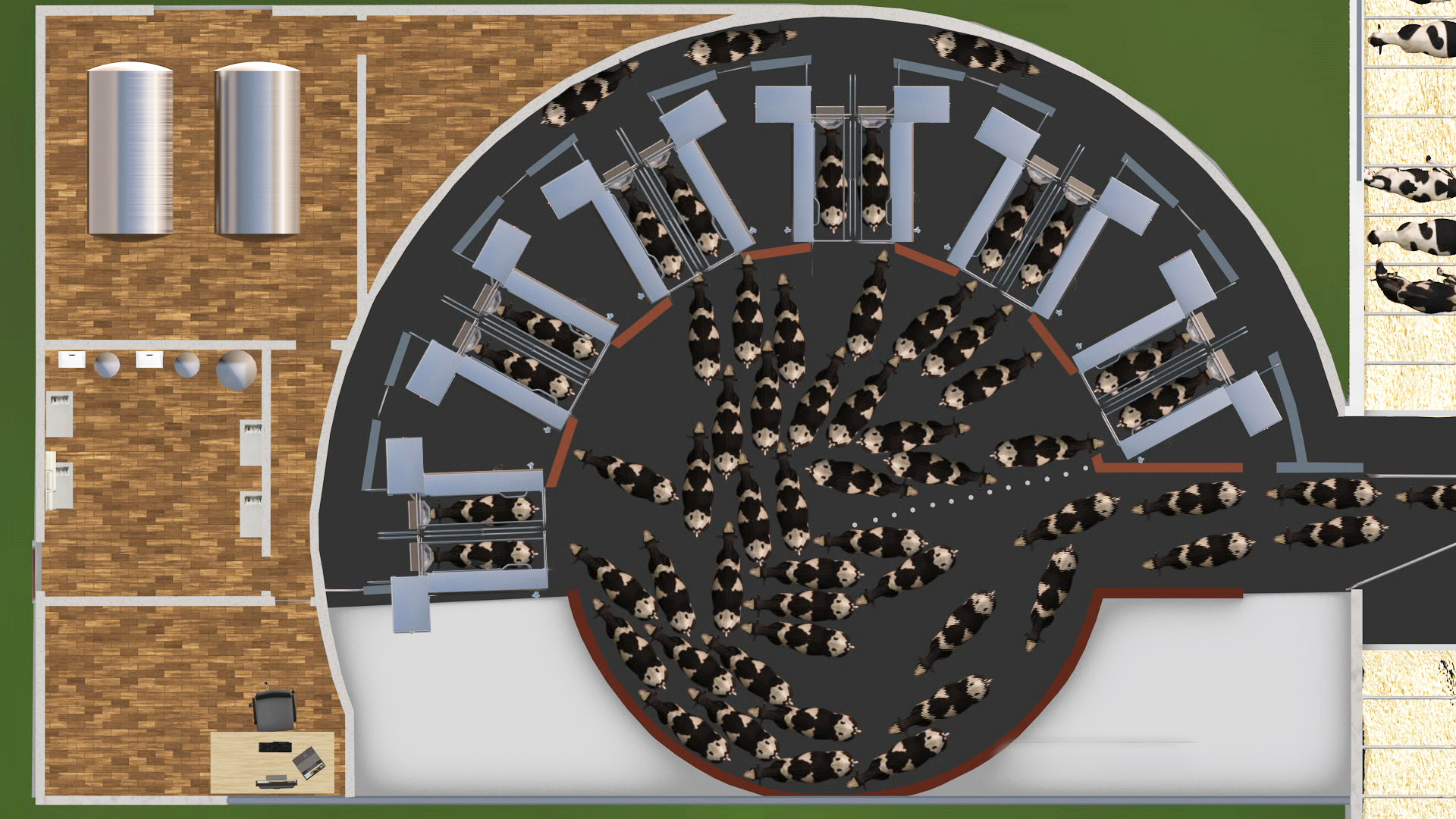

A M²erlin Meridian set-up consists of a semi-circular layout, with the inner circle acting as a waiting area. This was chosen so that the cow can proceed directly to the robots, without having to turn left or right at the entrance. A natural process for the cow in terms of cow traffic.

With the M²erlin Meridian system, the cows are automatically milked in batches by the milking robots, with no need for human supervision. The farmer can then bring in the next group by keeping the cows safely in a central waiting area. The moving drive gate in the inner circle ensures that cows never spend more than an hour in the waiting area.

The M²erlin Meridian helps farms achieve more with batch milking by combining the best aspects of conventional and robotic solutions in a new approach that leads to better results and creates a relaxed milking experience for both cows and farmers.

View the M²erlin Meridian here:

Standard options

Standard options:

• Cow recognition
• 2 feed motors
• K-flow dual entrance and dual exit gates
• FULLSENSE software and M²erlin Info App
• Streampulse milking technology
• Inline MilkLab with electronic milk measurement and CrystaLab sensor for monitoring for Ketosis and Acidosis, and more
• FarmCan 4QC mastitis detection per quarter
• FullCount cell count determination
• Backflush with Acid additive
• 1-phase power supply
• 1-phase power supply

Self assembly

At Fullwood, you can assemble the M²erlin milking robot yourself. That means, as a livestock farmer, you can choose from the options below:

• At Fullwood, you can assemble the M²erlin milking robot yourself. That means, as a livestock farmer, you can choose from the options below:
• 3-phase power supply
• 3- or 5-bucket milk separation unit
• Choice in type of recognition (AfiCollar or AfiTag or passive recognition)
• Separate feed box/separation unit
• 3rd concentrate engine and/or 4th feed type with PropyDos liquid
• Twin milk filter
• Milk sampler unit: buffer tank or cooling tank

Technical specifications

The M²erlin milking robot consists of the following specifications:

• Energy consumption: 0.015-0.020 kWh per kg of milk
• Water consumption: 150-200 litres of hot water and 200-250 litres of cold water
• Machine dimensions: 3537 x 2284 x 2150 cm (lxwxh)
• Robot space dimensions: 5000 x 2700 cm (lxw)
• Weight: 1200 kg

Real-time data

Real-time data are essential for your dairy farm. The M²erlin milking robot is equipped with smart sensors that can be linked to efficient tools. You can then accurately manage the fertility, welfare, productivity and health of your livestock.

• Afimilk: the AfiCollar collar sensor and AfiAct III hoof sensor connect efficiently with the milking robot’s software.
• FarmCan4QC: FarmCan4QC is an accurate conductivity meter that takes readings of every quarter for early detection of mastitis. This ensures optimal cow health.

• FullCount: this smart technology can reliably determine somatic cell counts. This is guaranteed to ensure high-quality milk and a consistent level of quality.
• Inline MilkLab: the milking robot laboratory. Here, the composition of the milk is measured in line with the milk flow. Measurements are taken at each milking and without the addition of reactant. This keeps you constantly aware of fat, protein and lactose levels. Thanks to the proper analysis of this information in the software, it is possible to detect problems early, such as rumen acidosis or ketosis.

Here’s why you choose the M²erlin milking robot

• Duel entrance and exit
• Optimal milking speed
• Flexible placement
• Possible more labour savings
• Exceptionally quiet

• More milk in the thank with Streampulse
• Full stainless steel construction
• Maximum udder health
• A robust, simple and reliable design
